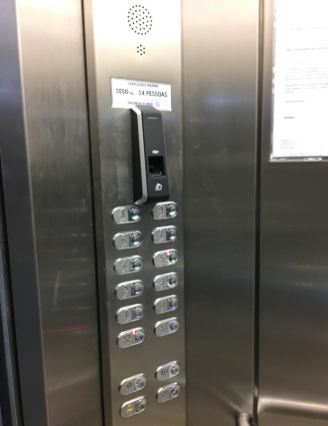

Access up to 64 floors in one elevator

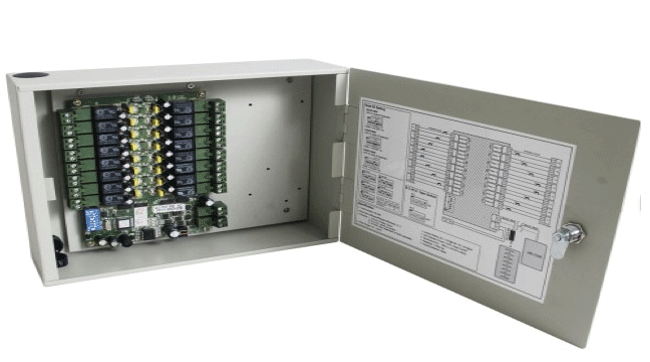

16 Relay outputs per module
Multiple authentication types Card, Face, Finger
Time Zones, Access Area and user based access control
Multiple Applications Locker Control
| Communication | RS-485 |
| Baud rate | Selectable |
| Weight(g) | 1,780±10g |
| Channels | 1. 16 Form C Relay Output 2. N.O./N.C. select via Jumper |
| Power Supply | +9 ~ +24VC |
| Contact Rating | AC: 110V@0.6A DC: 24V@2A |
| LED indicator | Power, Tx/Rx, Relay On/Off |
| Dimension | 180(L) x 231(W) x 62(H) mm |
| Housing Material | Metal |
