The UBio-X Tag is an RFID reader access control terminal.
Slim design, strong security, and rugged durability
Ensure reliable, secure operations anywhere, indoors or out.
Multiple card authentication
Apply multiple RFID card technologies, including MIFARE, DESFire, HID, Suica, etc.
Support for multiple card standards and mobile authentication (NFC/BLE) in one terminal.
Flexibly extend to existing security systems as well as new security environments.
Card authentication
RFID, MIFARE, DESFire, HID iClass, HID Prox, Suica, etc.
Mobile card authentication
NFC, BLE
Stronger security, more scalability
Securely connect different controllers and devices with bi-directional encryption with the international standard OSDP V2,
End-to-end encryption ensures full protection all the way from card to server.
OSDP V2 support
Securely scale to multiple controllers with two-way encrypted communication
End-to-end security
Encrypted communication all the way from server to device (AES 256, SEED 256)
Slim and smart design
Simple, sleek design and user-centered design for ease of use,
Slim design for thin door frames, narrow doorways, glass doors, etc.
It can be installed in a variety of frame structures without restriction.
Ruggedized for any environment
Meeting international standard ratings, including IP67 water- and dust-resistance and IK08 shock rating,
It works reliably in any harsh environment, from dusty, high-impact construction sites to the most extreme conditions.

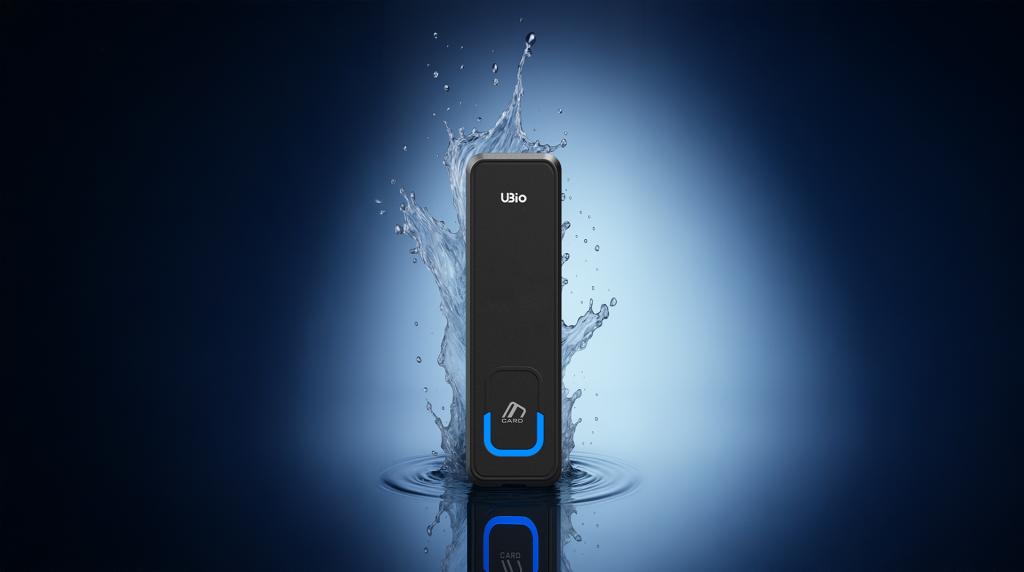

IP67 Waterproof & Dustproof
Complete protection from rain and dust

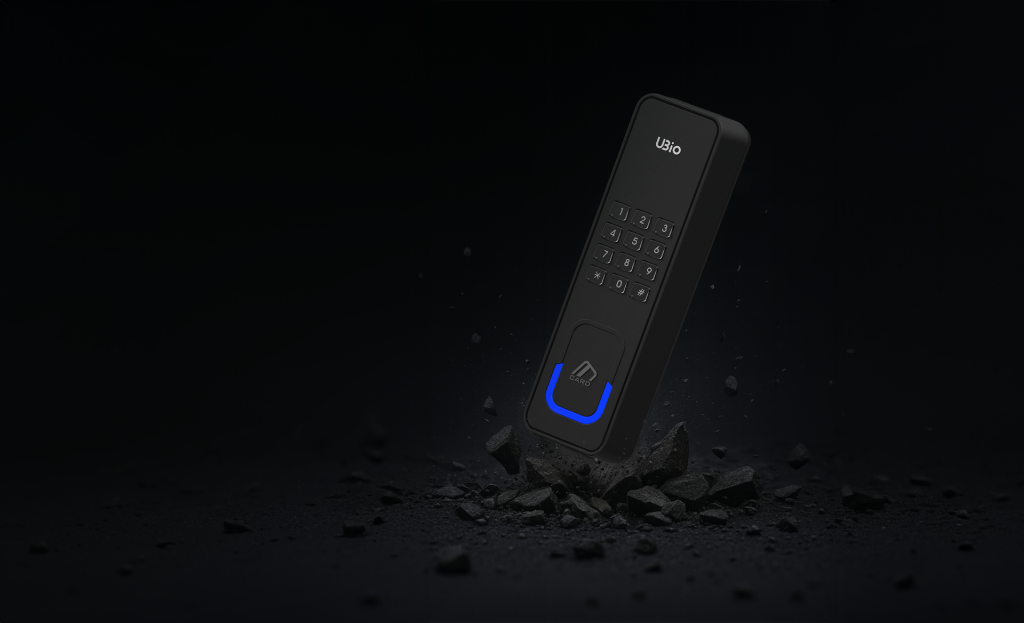

IK08 Impact Resistance
Stable operation even under strong external impact
Easy installation with one cable
Connect power and network with a single cable with PoE support.
Quick and efficient installation and teardown without complicated wiring.
BEFORE
AFTER

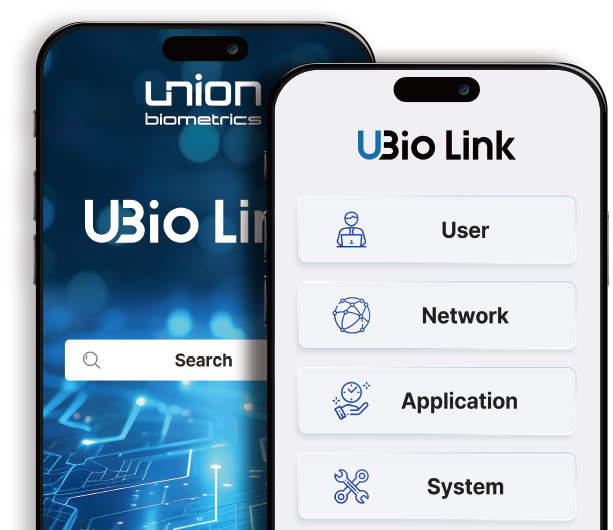

One UBio-Link App Easy to manage
From user registration to device setup with the dedicated app ‘UBio-Link’,
Manage with a single mobile app.
Increase operational efficiency and convenience by enabling quick response in the field without a PC.
Manage users
Add, edit, and delete users directly from the app
Mobile device settings
Device settings such as network, operating mode, system, etc. Copy settings to multiple devices
Firmware updates
Instantly update your device with the latest firmware stored in the app
Flexible scalability for different environments
The UBio-X Tag can be used alone with a single terminal,
When paired with a controller or server, it scales reliably to large-scale operations with thousands of users.
Flexible for any size, from small offices to large enterprise environments.
Stand-alone
Access control with a single terminal without a controller
RS-485 communication support
Multiple assertion-terminal and long-distance communications

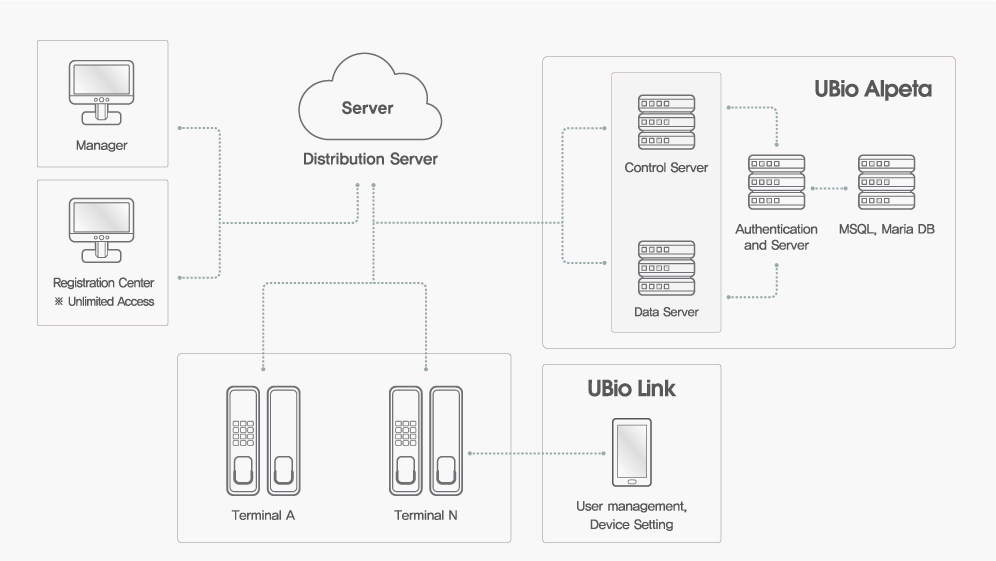

System configuration diagram
Applicable to

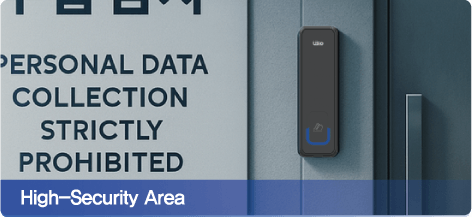

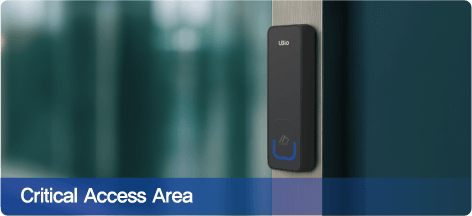

– Security-critical facilities such as government buildings, labs, data centers, etc.
– Streamline critical facility security compliance and operational management

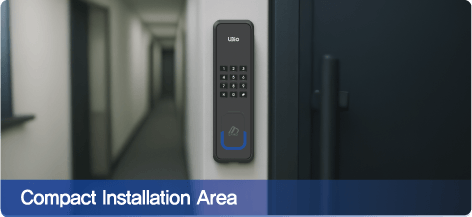

– Space-constrained areas such as apartment complex entrance gates, parking lot entrances, etc.
– Easy to install in a variety of spaces without structural changes

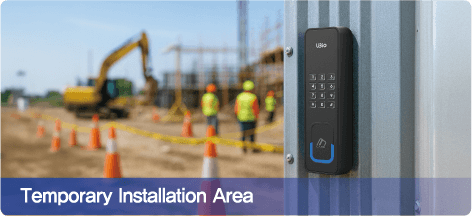

– Places that require short-term operations, such as construction sites, event venues, etc.
– Quick set-up and tear-down with a single PoE cable
– Areas where it’s difficult to install terminals, such as glass doors, thin-framed entry doors, etc.
– Eliminate security blind spots with a compact design that doesn’t restrict installation
Product specs
| Maximum number of users | 400,000 | |||
| Text logs | 1,000,000 | |||
| Card Module (SC/RF Dual) | 13.56MHz Smart Card Reader (ISO14443A/B, Mifare, Felica, ISO15693), SEOS (Optional), DesFire (EV1/EV2/EV3 Optional), SAM slot | |||
| 125kHz RF Card Reader (Module), EM, HID Prox (Optional) | ||||
| Mobile | NFC / BLE | |||
| Keypad | Physical Keypad | |||
| Waterproof/Dustproof | IP65 / IP67 | |||
| Vandalism prevention | IK08 | |||
| CPU | ARM Cortex-A7 Dual-core 1.2 GHz | |||
| Memory | 4GB eMMC + 256MB RAM | |||
| LED | Multicolor (tricolor) – White, Blue, Red | |||
| Operating temperature | -20℃ to +60 | |||
| Humidity | 0% to 95 | |||
| Weight | 200 grams (keypad 202 grams) | |||
| Size (W × H × D) | 45 × 157 × 27 mm | |||
| Temper | Support | |||
| Ethernet | 10/100 Mbps | |||
| RS-485 | 1ch (select master/slave) | |||
| PoE | Support | |||
| Relay | 2ch | |||
| In | 2ch (1ch Optional) | |||
